YUK801 TS multiplexer is based on PID packet switching technology and can automatically generate SI/PSI information. It

supports independent editing PID and other information, with program Service and PID filtering functions. It’s widely used

in wired and wireless digital TV headend.

YUK9002 stream media encoder adopts H.264/H.265 video compression algorithm and AAC-LC/ AAC-HE audio

compression algorithm. It has excellent video performance and audio reproduction even under severe conditions of

low network bandwidth. 1080P25 encoding delay is less than 300ms by using low-latency encoding technology.

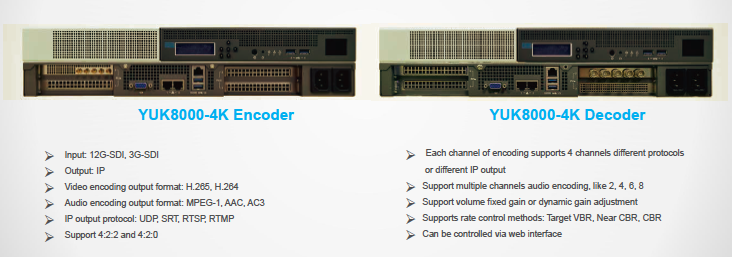

YUK8000 series is a broadcast-grade professional 4K encoder transcoder decoder. It can be inserted in up to 2 cards. Each card

supports 1-ch 12G or 4*3G SDI signal encoding and 1-ch 4K signal or 4-ch HD signal decoding. Support multiple HDR, color gamut

2020 and other advanced parameters.

YUK9000 real time encoding & transcoding system support multiple video resolutions such as 4K, high definition,

standard definition etc. It supports H.264, H.265, MPEG-2, MPEG-4, WMV, FLV, AVS,AVS+ and other video formats. It’s

widely used in digital cable television, terrestrial television, IPTV, OTT, CMMB etc.

multi-channel broadcasting level professional H.264/MPEG-2 encoder. It supports up to 4 channels HD-SDI/ SD-SDI

or 4 channels HDMI signal input, 2 channels ASI input, 2 channels ASI output and Gigabit IP input/output

Decoder 2/ 4 channel The signal outputs double ASI and IP ports. The maximum output rate us 10MB/s, and it can be controlled and settled by internet. It is widely used in today’s digital TV broadcast market.

Yukuan IRD supports H.265/ H.264/ MPEG-2/AVS+ decoding. It is widely used in the satellite, cable and terrestrial TV network with

different tuner frontend DVB-S2/S, DVB-C and DVB-T/T2. It supports RF/ASI/IP input, single channel HDMI/HD/SD-SDI/Genlock

signal and CVBS (one out of two)/analog stereo/AES/ASI/IP output.

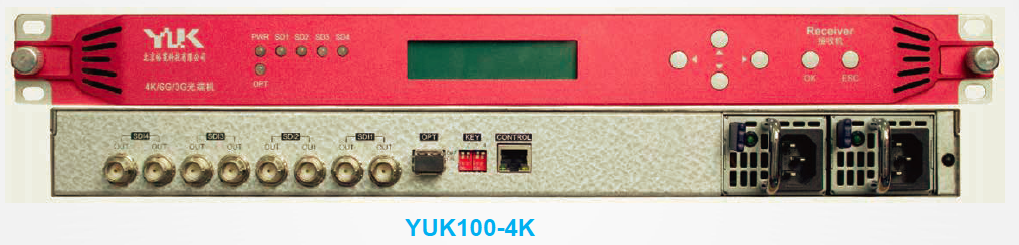

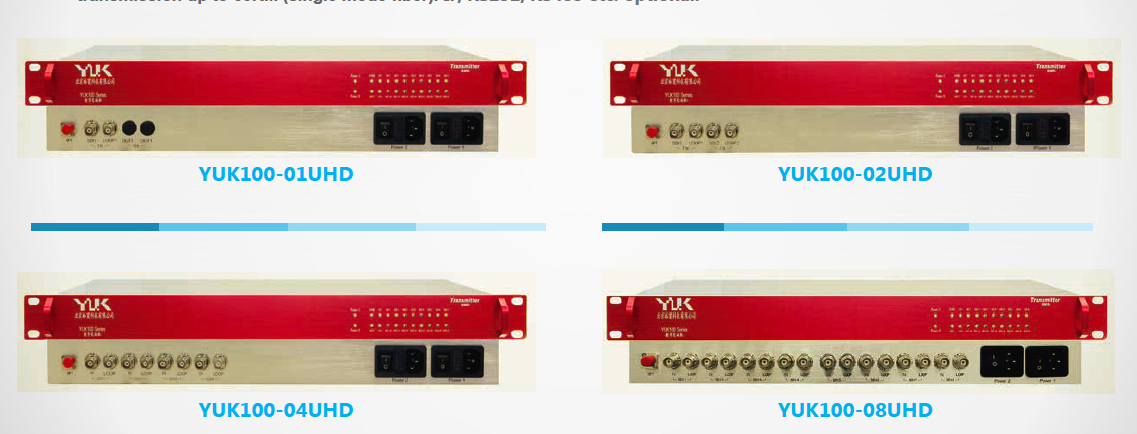

YUK100-UHD series can transmit 1 to 8 channels unidirectional or 1 to 4 channels bidirectional 12G-SDI signal over 1-core

single mode or multi-mode fiber, downward compatible with 6G/3G/HD/SD-SDI and DVB-ASI. It provides reliable high quality

transmission up to 60KM (single mode fiber). IP, RS232, RS485 etc. optional

.

YUK100-UHD series can transmit unidirectional 1×12G/2×6G/4×3G-SDI signal or bidirectional 1x12G-SDI signal over 1-core

single mode fiber. It supports transmitter with 1×12G-SDI signal input and receiver with 4×3G-SDI 4K signal output, or

transmitter with 4×3G-SDI 4K signal input and receiver with 1×12G-SDI signal output

YUK5301 can realize automatic switching or manual switching of the stream in response to various abnormal situations

of the main broadcast signal.It supports three channels ASI signal input (main, backup and auxiliary), can realize automatic

or manual switching at the same time and output 5 channels ASI signals.

.

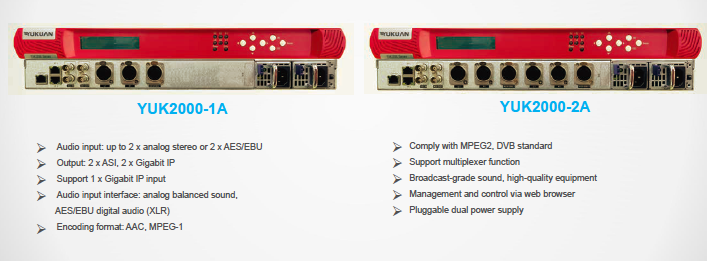

YUK2000-1A/2A is a broadcasting level audio encoder that complies with MPEG-2/DVB standards. It can realize up to 2 x analog

stereo signal or 2 x AES/EBU digital audio encoding, output 2 x ASI and 2 x Gigabit IP, and support 1 x Gigabit IP input.

YUK700-901 IP QAM modulator is a new generation of headend modulator, adopting international leading technology, and a universal

platform for digital TV with high reliability, flexibility and customization. Receive the multimedia transmission stream from the video

server or CDN network through the Gigabit IP (GbE) network interface, extract the specified TS program stream from it, and multiplex

it, buffer debounce, up-conversion and other related processing, and pass the signal from the RF port to the HFC network after QAM

modulation .

1*7 distribution for 1 channel AES/EBU signal, 1*4 distribution for 2 channels AES/EBU signal

2 channels analog mono audio signal into 1*4 output respectively

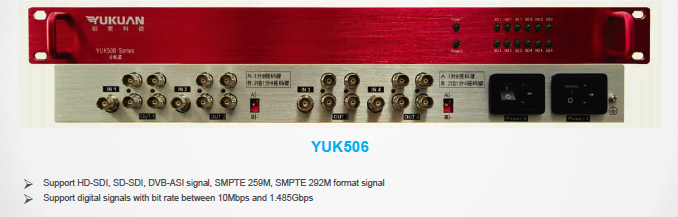

YUK506 series digital video distributor can distribute high-definition or standard definition or DVB-ASI signal up to 1*8

distribution for 2 channels or 1*4 distribution for 4 channels.

YUK9700 series is an IP-based stream switching matrix that supports multiple encapsulation formats and multiple

transmission protocols. It can realize the scheduling and smooth switching from any input stream to any output stream,

and can support up to 512 channels input and 512 channels output.

YUK622 converts IP to ASI or ASI to IP. It can receive the transport stream from ASI/IP input (comply with MPEG-2 standard).

The device is configured with 2×ASI input, 2×ASI loop out, 4×ASI output, 2×data IP input/output. It supports simultaneous

transmission of bidirectional ASI and IP signals and outputs 2×MPTS/16×SPTS.
